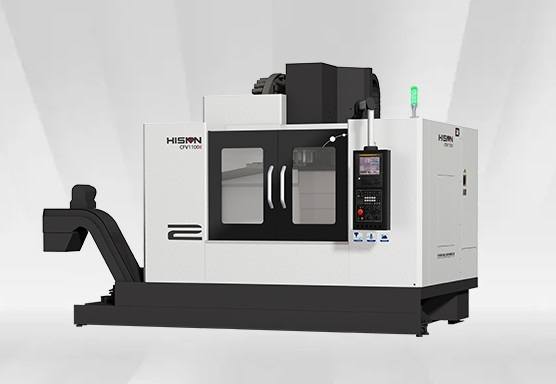

The new CFVⅡ high-speed vertical machining center inherit the excellent performance of its predecessor and further expands the features of high efficiency, high precision, and high reliability. Each component has been subject to a number of functional upgrades and optimized design. In line with an ergonomic layout, it enhances the operating experience. This series is suitable for all types of processing in the parts and mold market. Let’s follow the camera to explore!

Features:

01 Optimize the component structure

Highly rigid foundation components, large-span thickened bed base and bottom closed column. Lightweight moving parts, with the total weight of the headstock and motor spindle 30% less than the norm.

利来·国际(中国)最老牌-中国官网

02 High-speed and high-precision built-in motor spindle

Built-in motor direct drive with no other vibration source. Star-delta switching two-speed automatic transmission, low-speed high torque, high-speed constant power. “Zero” transmission, small inertia, stator with instantaneous high power output, 0 to 8000 rpm start in 0.8s.

利来·国际(中国)最老牌-中国官网

03 Servo tool changer stability improvement

The return-to-zero switch for new tool magazine arm ensures that the mechanical arm is effectively returned to its original position. Five-stage tool change in the tool magazine, with T-T up to 1.3s. Significantly reduce shock to the ATC and improve cam box life.

利来·国际(中国)最老牌-中国官网

04 Newly designed functional layout of the whole machine

Each function module is open to the operator. With the standard maintenance foot pedal, it is more conducive to maintenance. With an integrated tank chip conveyor, it covers a smaller footprint.

利来·国际(中国)最老牌-中国官网

Main parameters

1.Spindle speed (optional): 12000rpm (15000rpm)

2.Spindle power: 11/18.5kW

3.Spindle torque: 61.8/ 86.2N.m

4.Tool holder type (optional): BT40 (HSK-A63)

5.X\Y\Z axis travel: 1100\540\520mm

6.X\Y\Z axis swift moving speed: 48m/min

7.Worktable size: 1300×550mm

8.Tool magazine capacity (option): 24 (30T)
